LPG Gas Tank Making Machine for LPG Cylider Manufacturing Plant

FOB Reference Price:Get Latest Price
  • >=1 Sets
    $8,000.00
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
China
Brand Name:
TOPSUN
Model Number:
12.5kg/15kg LPG gas cylinder production auto line welding machine
Name:
12.5kg/15kg LPG Gas Cylinder Production Line
Function:
12.5kg/15kg LPG Gas Cylinder Production Line
lpg gas cylinder size:
12kg, 12.5 kg.15kg,25kg,48kg or customized
lpg gas cylinder thickness:
2.5-4mm or customized
lpg gas cylingder length:
less than 2000mm or customized
lpg gas cylinder diameter:
250-800mm or customized
power:
customized for lpg gas cylinder auto line welding machine
Application:
LPG Gas Tank Making Machine
Usage:
LPG Cylider Manufacturing Plant
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
600 Set/Sets per Year 12.5kg/15kg LPG gas cylinder production auto line welding machin
Packaging & Delivery
Packaging Details
standard package for for LPG Cylider Manufacturing Plant
Port
Shanghai,China
Lead Time :
3-4 months after down payment
Product Description

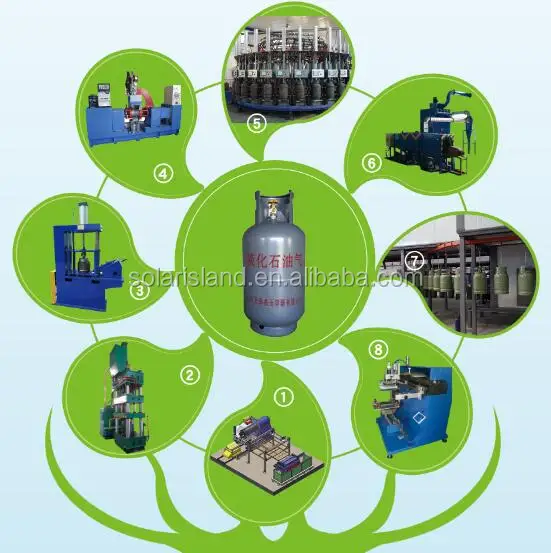

LPG Gas Tank Making Machine for LPG Cylider Manufacturing Plant

Circle Blanking Line for lpg gas cylinder production line

 De-coil and punching machine for small round sheet cutting from big sheet(material preparing for shell)

Plate Thickness:2-4mm

 Width of plate:Max.1170mm
ID of steel coil:450-800mm

 OD of steel coil:Max.1800mm

 Weight of steel coil:Max.25T
Coil blanking specification:Ø370-Ø615mm

 Blanking period:12s/time including auxiliary time

Deep Drawing Machine (Streching /Head Forming Machine) for LPG gas cylinder production line

1. Nominal force 3000KN
2. Drawing force 2000KN
3. Blank holder force 250×4KN
4. Max. fluid working pressure 25MPa
5. Stroke of drawing slide 700mm
6. Stroke of blank-holder slide 400mm
7. Max. daylight of drawing slide 1400mm

Automatic Trimming machine for LPG gas cylinder production line

his machine is reliable, easy to operate.
Motor power: 5.5KW
The air pressure: 0.6Mpa
Process time: 20s
The weight of machine: 1.5tons

End Dish Necking and Cleaning Machine forLPG gas cylinder production line

This machine is specialized in producing the head plate and shrinking mouth of LPG cylinder .It adopts pneumatic loading& clamping, cam control, automatic feeding, continuous working. It is also suitable for air compressor storage air compressor storage tank reducing mouth. (It can design and manufacture according to the actual requirement)

Hole Punching machine for LPG gas cylinder production line

Punch the hole on head of the cylinder
Technical data
Motor power:5.5kw

 Punching speed:180Pcs/hour

 Weight of machine:1.5T

Valve Seat Welding Machine


Rated voltage:220V

Motor power:0.25kw

Air pressure:0.6Mpa

Foot Ring (bottom base )Welding machine

Current:AC380V+N

 Motor power:0.55kw Air cylinder pressure:0.5-0.7Mpa

Guard Ring(handle) Welding Machine


Rated voltage:AC380V Motor power:0.55kw Air cylinder pressure:0.5-0.7Mpa


Assembly Machine(Connecting) for LPG gas cylinder production line

To assemble both halves of the cylinder together and get ready for welding
Technical data
Cylinder diameter:250mm

 Air cylinder pressure:0.5-0.7Mpa

Automatic Circumferential Welding for LPG/LNG Production Line

Technical data
This machine is applicated to automated MAG circumferential welding for LPG cylinder,fire extinguisher bottle,etc.
Welding Length:Max.1500mm Ø:250-400mm

 Thickness:2.5-6mm
This machine price include 1 set panasonic welding machine(Model:GL3-500A),1 set cooling water device,welding seam tracker.
Producing capacity:250 pcs/8 hrs

Heating Treatment for LPG gas cylinder production line

This furnace is designed to anneal LPG cylinders by applying flame from gas burner on the cylinders. It composes, burner, flaming chamber, smoke collector, rails, chain roller, exhaling system.
It feature includes, adjustable time, self-control thermometer, perfect heat treatment result and fire off pollution.
Technical data
Producing efficiency:75pcs/hr

 Feeding type:Chain drive/cylinder feeding
Cleaning size:Ø320*700mm------Ø420*1250mm
Dimension:(L*W*H):12500*1390*1560mm removable transport

Hydrostatic Testing Machine for LPG gas cylinder production line

The machine is special for steel cylinder of liquefied gas cylinders,applicable to manufacturers and testing station for wuthstand voltage test on cylinder.Irrigation,pressurization,pressure,maintaining centralized control and automatic pouring completed by using water pump,equipped with a water tank,water can be recycled.
Technical data:
Pneumatic pressure:0.6Mpa
 Motor power:3kw
Hydrostatic test pressure:3.2Mpa
 Weight:1.1T

.

Shot basting Machine

Shot Blasting Machine for LPG Cylinder are predominantly used to clean LPG/CNC/GAS cylinder in a continuous through feed process, remove remains of casting sand and cores, rust, old paint, visible signs of welding, eliminate surface stress, improve the fatigue strength of the workpiece, increases workpiece film adhesion of the paint job, and ultimately achieve the aim of improving the quality of surface and internal, prepare for surface protection
Produing efficiency:80-120pcs/hr S

hot blasting machine:2 sets
Hoist motor power:2.2KW

Total power:31.2KW
Weight:16T

 Workpiece size:Ø320mm*680mm
Machine dimension:(L*W):7885*2460mm

Zinc  Metalizing Machine for LPG Gas Tank Making Machine

.Zinc Metalizing Machine
Arc spraying zinc machine total power: 15KVA*N
Vacuum cleaner engine power: 5.5KW
The compressed air input pressure: 0.55~7Mpa
Diameter of the zinc wire: 2-3mm
Rated input voltage: 220V~280V
Productivity: Max. 90 pcs/hour
Zinc wire consumption: 93 kgs/hour

Spraying/Coating/Paintng Machine

The spraying producing line for U track,using electric or natural gas,fuel oil,coal heating,hot air circulation,the allocation of fixed automatic spray gun 4,manual gun 1.Spraying powder or paint on the steel cylinders apperance.The cylinder into the oven drying after spraying
Working voltage:380V 50HZ Air pressure:0.4-0.6Mpa
Total power:15KW Working efficiency:180Pcs/jr

Valve Fixing/ Mounting Machine

Motor power:2.2KW Motor speed:1400r/min
Work spindle speed:15.5r/min

 Working air pressure:0.5-0.6Mpa
Consumption per hour:1.14m3

 Clamping cylinder stroke:120mm
Rotation speed ration:1:59 Weight:0.9T

Air leakage testing machine for for LPG Cylider Manufacturing Plant


Air pressure: 0.6Mpa
Air test pressure: 2.2Mpa
Holding time: 60s
Motor power: 3KW
Weight of machine: 1.8ton
Size of cylinder available: 320*700-420*1250mm

Our Service

*  Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas
Related Products

Circumferential Welding Machine


   Electrostatic Painting Line


  Longitudinal Welding Machine


Other LPG/LNG Gas Cylinder Production Machines
Item
Model No.
Unit
Quantity
Hydraulic press
500T
Set
1
Blanking line
XL-2
Set
1
Deep drawing/Stretching machine
200/300
Set
2
Trimming machine
QK-7
Set
2
Halves necking/joggling machine
SK-4
Set
1
Cleaning / Polishing machine
QL-5
Set
2
Bung hole punching machine
CY-2
Set
1
Valve seat automatic welding fixture
FH-3
Set
2
Collar automatic welding fixture
TH-1
Set
2
Foot ring automatic welding fixture
DH-1
Set
2
Cogas protective welder
350
Set
6
Assemblly machine
ZZ-1
Set
2
Circumferential seam welding fixture
HH-2
Set
4
Cogas protective welder
500
Set
4
Heat treatment unit
RCL-2/12m
Set
1
Hydrostatic testing machine
SY-6
Set
2
Shot blasting machine
PQ-4
Set
1
Spraying/Painting production line
JP-1
Set
1
Angle valve fixing machine
JA-2
Set
2
FAQ

Q: Can your machine be customized ?
A: Yes, we are a professional manufacturer specialized in automatic welding
equipment more than 25 years, we have a strong design & technical team,
we can design and manufacture as your requirements.

Q: How to get an accurate quotation ?
A: Please provide us the detail of the workpiece such as drawings or daily out put

Q: What's the shipping cost from China to your country ?
A: We can send machine to your port by sea . Customers specify freight forwarders or negotiable shipping methods.

Q: Payment terms, MOQ, warranty, FOB...
A: Payment terms: 30% down payment against order
Minimum order quantity: 1 set
Delivery time: 2-4 months after receipt of formal order
Warranty: 12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc. You can contact us any time.
