Professional Electric Water Heater Production Line Machinery for electric water heater making machine

FOB Reference Price:Get Latest Price
$20,000.00 - $60,000.00 / Set | 1 Set/Sets (Min. Order)
Support Sea freight
Report Suspicious Activity
Quick Details
Place of Origin:
Brand Name:
Professional Electric Water Heater Production Line Machinery
Model Number:
Professional Electric Water Heater Production Line Machinery
1 Year
Fully Automatic,semi automatic
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
5 Set/Sets per Month Professional Electric Water Heater Production Line Machinery
Packaging & Delivery
Packaging Details
wooden box or nude package for Professional Electric Water Heater Production Line Machinery
main port, china
Lead Time :
1-3 months after receive down payment
Product Description

Professional Electric Water Heater Production Line Machinery

TOPSUN are devoting ourselves in designing and supplying water heater production line and Auto. Welding system.
With professional team, we focus on full innovation solutions based on continuously enhanced technology, not just supply separate and conventional machines, but concentrating on follow-up project automation upgrading, we offer continuous and prospective project proposal. Keeping on site production supervision and phased acceptance can make sure of perfect product quality and reliable machine performance. Before machines are dispatched, equipment system integration and successful trial running on line is our advantage. And professional commissioning and training is one of work.

Water Heater line

Professional Electric Water Heater Production Line Machinery

Automatic rolling machine for Electric Water Heater Production Line

Technical Parameters:
Rolling Open:0~+15mm;
front and back offset after rolling:<2mm/m;
low and rise offset after ro
rolling straight edge:<10mm;
after rolling the max and min dia tolerance:≤6mm

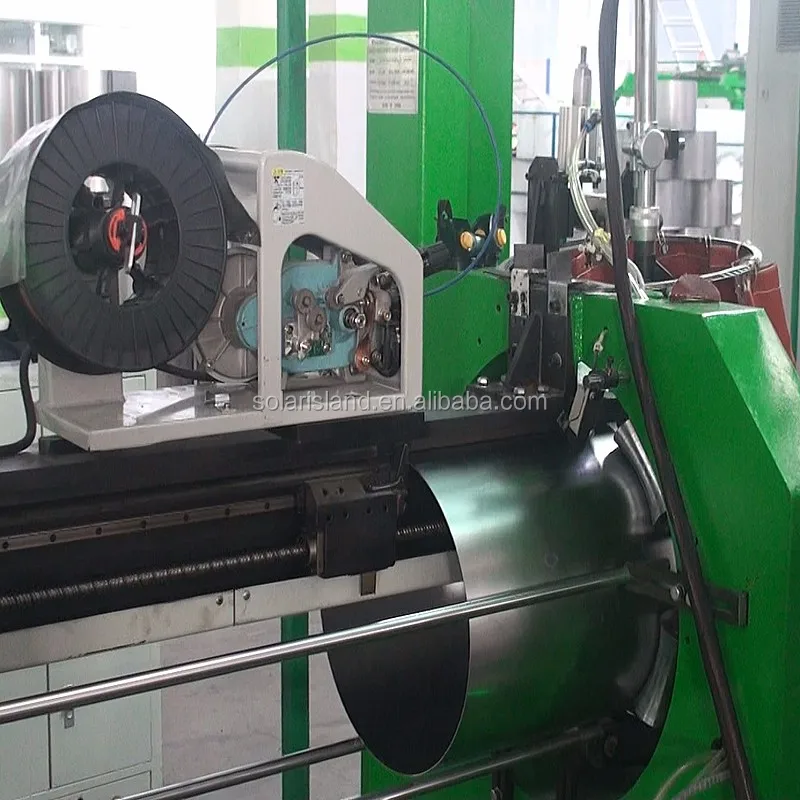

Water heater inner tank straight seam welding machine, tunnel pass-by welding machine, plasma welding machine

Welding technology is one side welding and two sides forming,welding speed is ≥800mm/min
Welding air:Ar/100%;
Welding Protect Air:Ar/100% or AR/95%+H2/5%
Protect Air:Ar/100%(back side protect )

Flaring Machine for Electric Water Heater Production Line

Item Parameter
Barrel length 280-1150MM
Max. sheet thickness CRC=2.5MM; Stainless Steel=2.0MM
Min. barrel diameter 300MM
Max. barrel diamete 450MM
Sheet carbon steel/SS
roller diameter 100-130mm

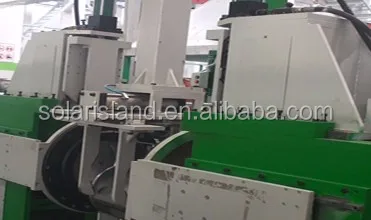

Assembly Machine for Electric Water Heater Production Line

echnical Parameters:
Spindle motor speed: 30 r/min
Spindle motor power: 3 KW
Hydraulic motor power: 15 KW
Hydraulic system pressure: 7 MPa
Pneumatic system working pressure: 0.7 MPa
Barrel diameter range: Φ300~Φ450 mm
Barrel length range: 280~1150 mm
One assembly circle period: 20 seconds

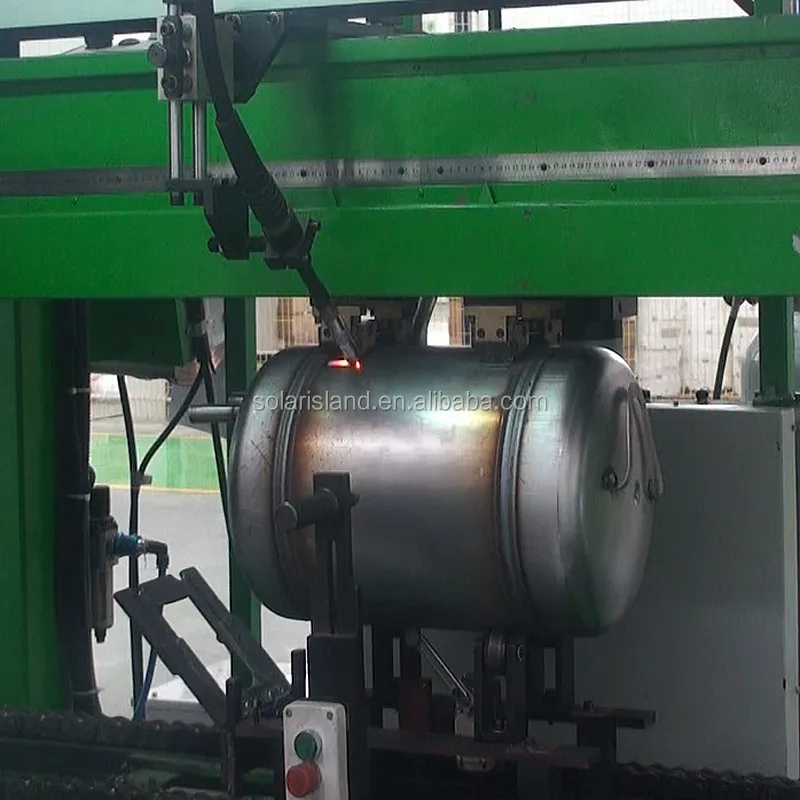

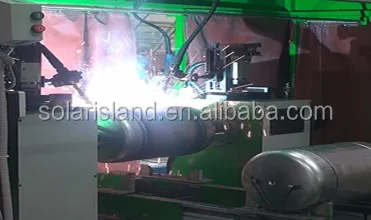

Circumferential Seam Welding Lathes

Water heater welding production line, , circular seam welder, water heater inner tank circular welding machine
Welding way: MAG
Welding Method:two welder overlap welding,fixed welder,products rotating;seam welding tracking system,tracking the welding quality
Protection: partial protect,protect arc light,
Loading and unloading: automatic loading, mechanical hand air transplant unloading

Related Products

Bracket Welding Machine for Electric Water Heater Production Line

Welding machine of bracket of water heater inner tank
Fix workpiece,two torches weld along straight seam.
Welding process: MAG (welding speed 0.8-1.5m/min.)
Torches are driven by AC servo motor
Special fixture for bracket
Online or offline structure of main body
Four torches for welding
Arc light protective device
Automatic transferring manipulator of bracket

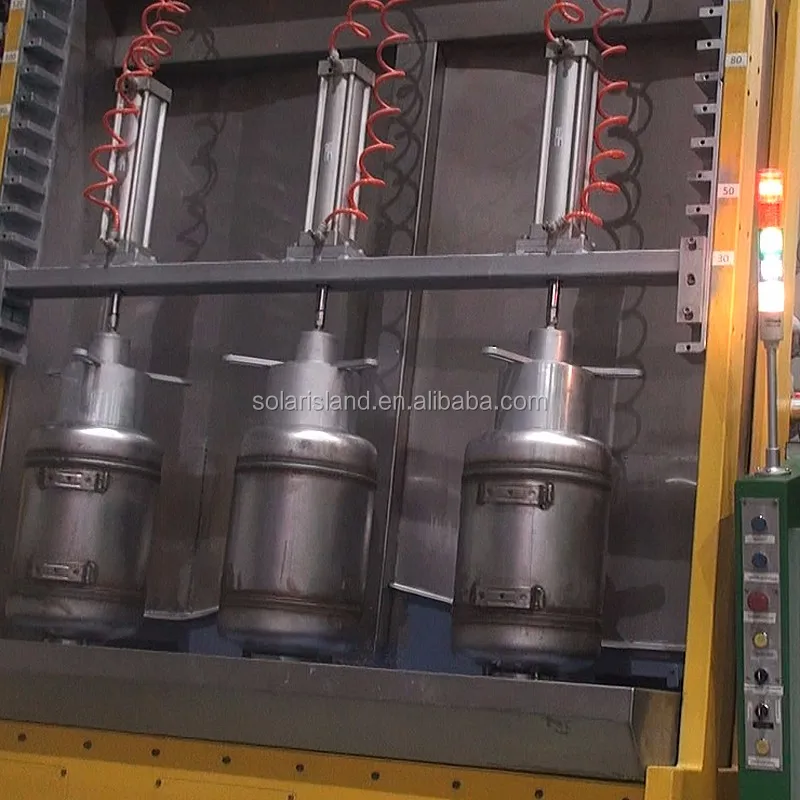

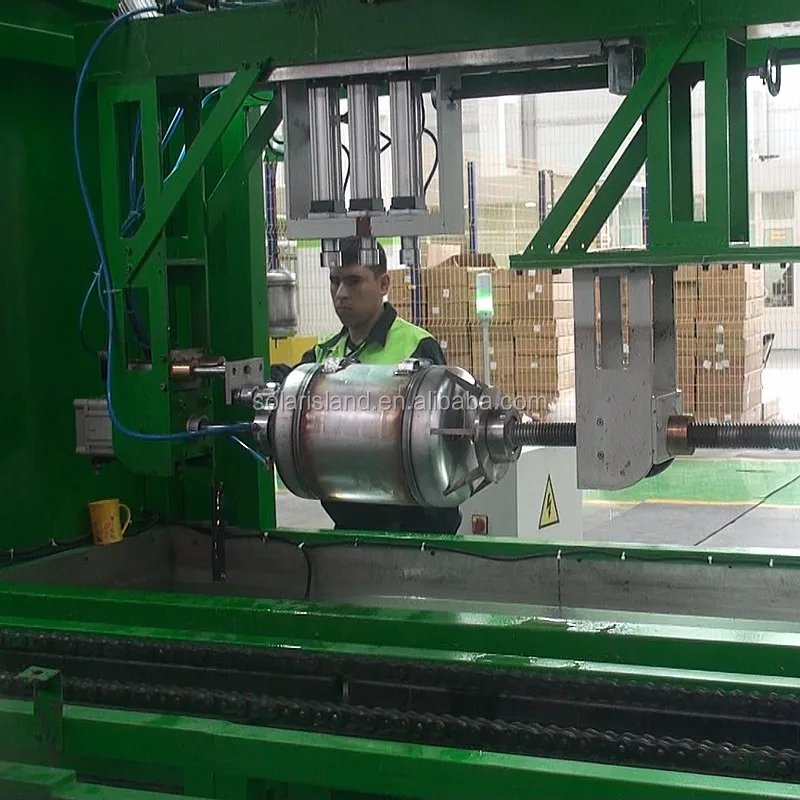

Leakage Testing Machine for Electrical Water Heater Inner Tank Production Line

Inner Tank Capacity: 10-100L;
Inner Tank Dia.: Φ280-Φ400;
Inner Tank Length: 324-1003mm;
Inner Tank Thickness: 0.8mm;
Production Capacity: 40S/Pc
Electric Power Requirements: 3 Phase 380V / 50Hz;1 Phase 220V / 50Hz;
Max. Power: 200W
Max. Gas Consumption: 1250L/Min

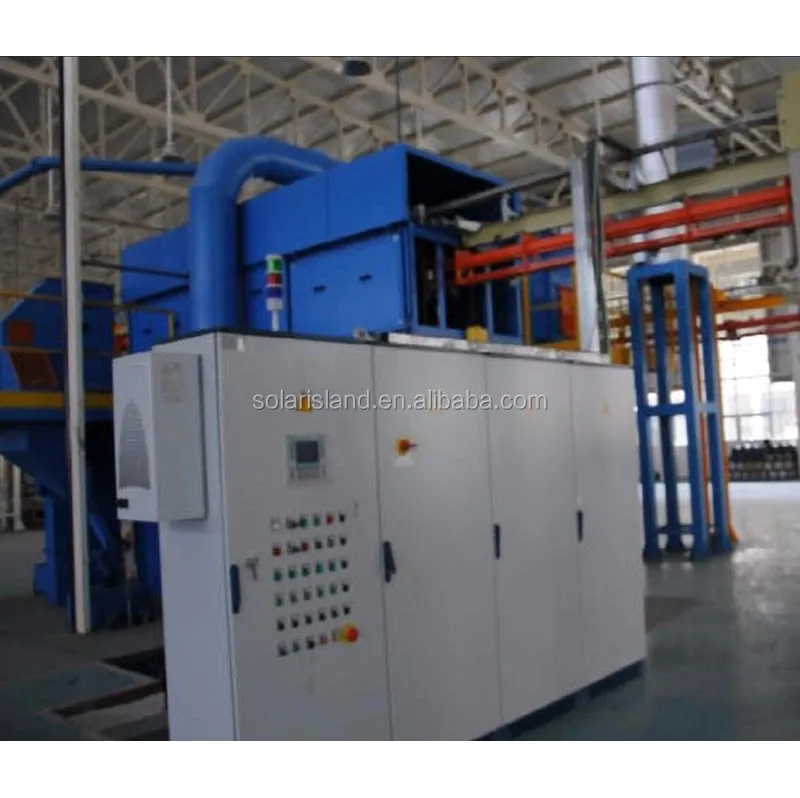

Sand Blasting Machine for Water Heater Tank Line

1. Sandblasting cabinet: frame is made of structural steel. Wall is made of steel sheet.Rubber sheets are adhered to the inside of walls and roof.
2. Sand blasting machine: consists of sand blasting machine,sand blasting pipe, sand blasting nozzle.
3. Sand recycling system
4. Spraying gun moving mechanism
5.Control system

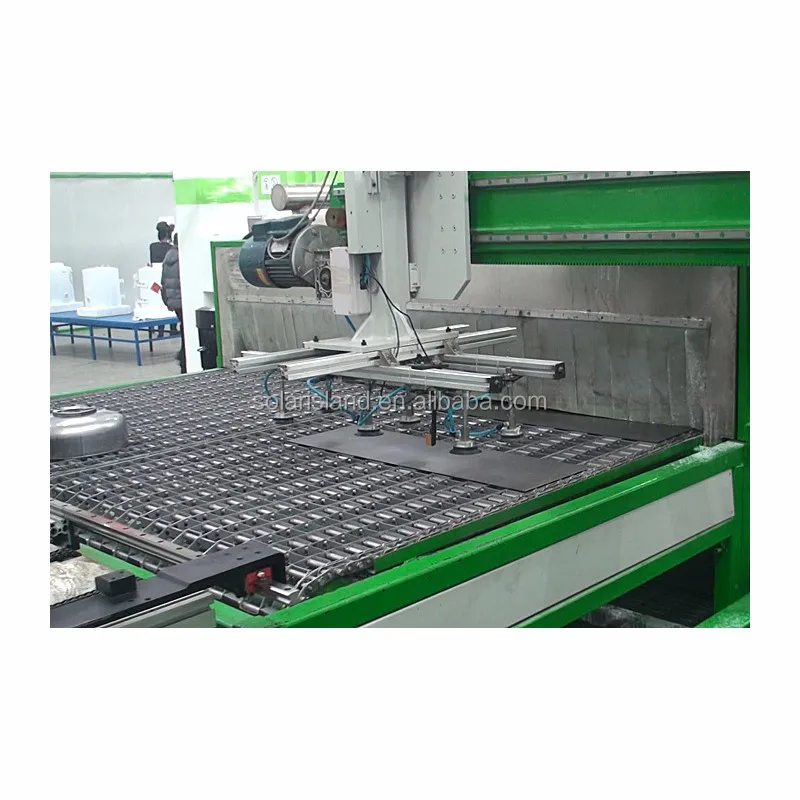

Water Tank Heater Production Machine Washing Line

Technical Parameters:
Workpiece material: CRC
Workpiece size: Cap diameter < 420mm; Sheet width< 1400mm
Workpiece weight:<20KG
Technique speed: V=4.0 m/min(0.6~6.0m/min Changeable)
Conveyor type: Horizontal SS net chain conveyor
Capacity: Cap 1000pcs/8Hr”"

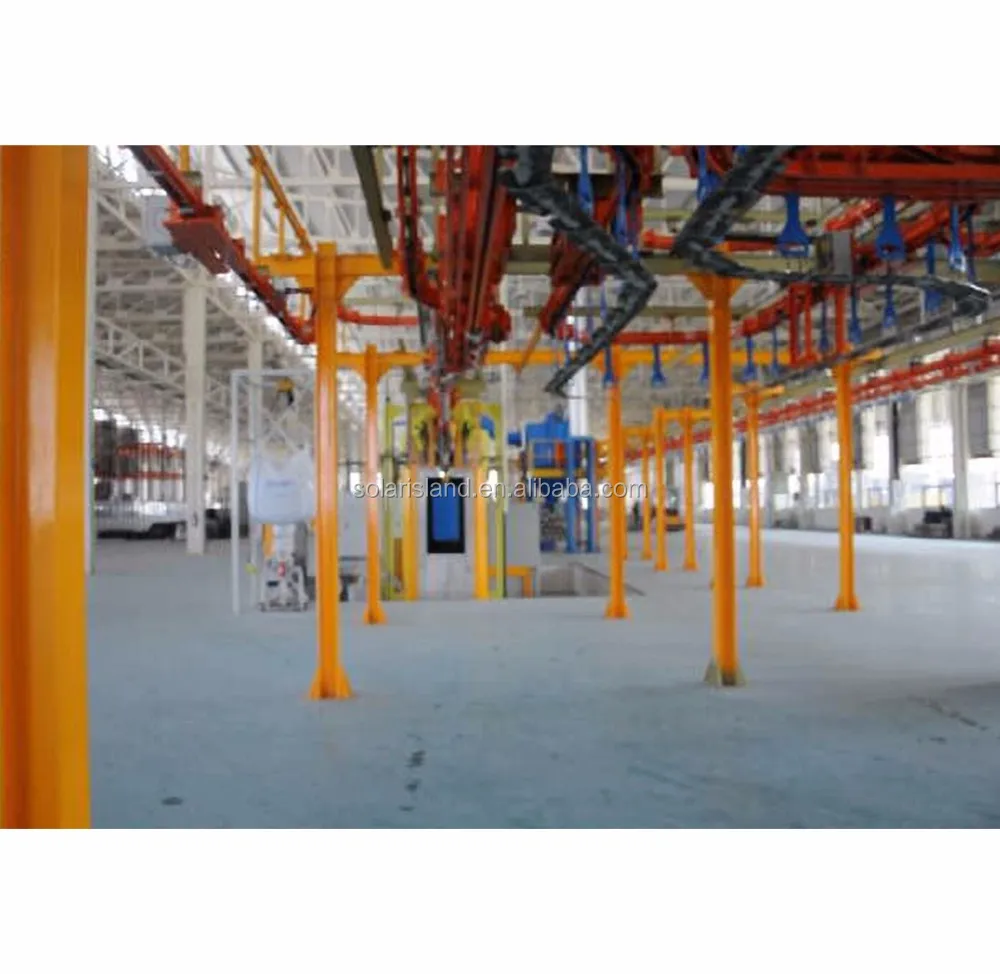

Enameling Line for Electric Water Heater Production Line

1.Mainly used for hanging sintering. Max. size of inner tank: Ф410mm, height: 1400mm
2. Max. weight born by single hanger: 60Kg
3.Heat source: natural gas. Reference: 8500kcal/m3
Please offer the actual figure.
4.Sintering capacity: more than 1500kg per hour (hangers included ).That is more than 60 pcs/hour.
5.Temperature control: 8 areas, 8 points
6.8.Temperature ranges: 700℃~900℃; it takes less than 90 minutes for a cold furnace to reach 850℃.

Drying furnace and sintering chamber for electric water heater production line

1.Chains inside the drying furnace is with length of 40m. It takes about 50-60 minutes for the drying.
2.Heat source for drying: adopting the 120℃ hot air which is from heat exchanger.
3. Chain speed: 0.5m~5m/min. Adjustable.
4. Sintering capacity: more than 60 pcs/h.
5. Sintering furnace is designed with heating temperature of 900℃.

Our Service

1.One year free warranty

2. follow-up project automation upgrading

3. Technical support  customized according to client's requirments
